Jaw Geometry and Connection Fit

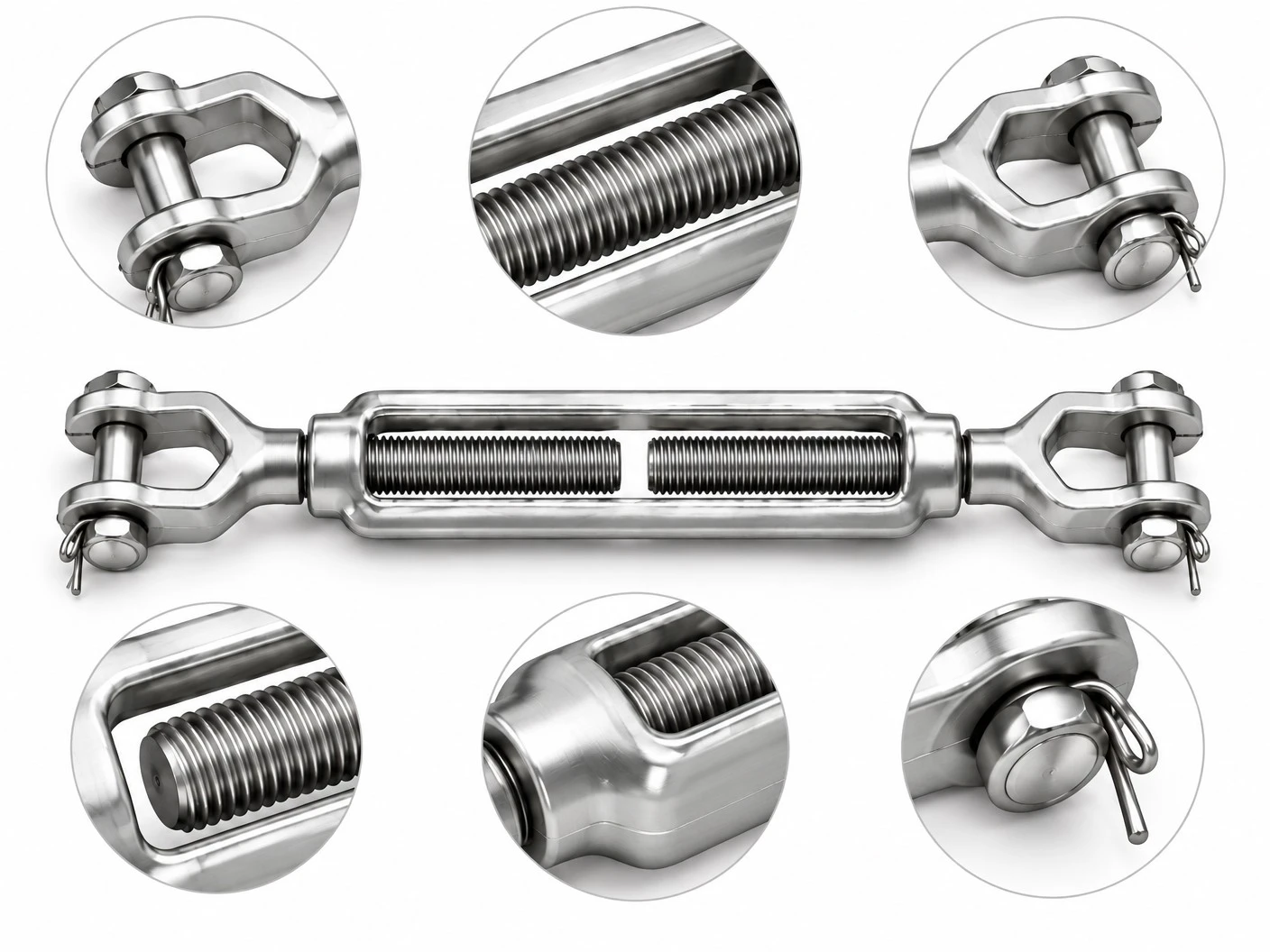

A jaw end has two parallel sides with aligned holes for a connecting pin. The mating part fits between the sides, so the jaw opening, hole diameter, and pin size need to match. Side thickness and hole position also matter when space or fit is limited.

If the opening is too narrow, assembly may be difficult; too much clearance can allow unwanted movement. A jaw joint allows rotation around the pin, but the available movement depends on the surrounding components.

How the Adjustment Mechanism Works

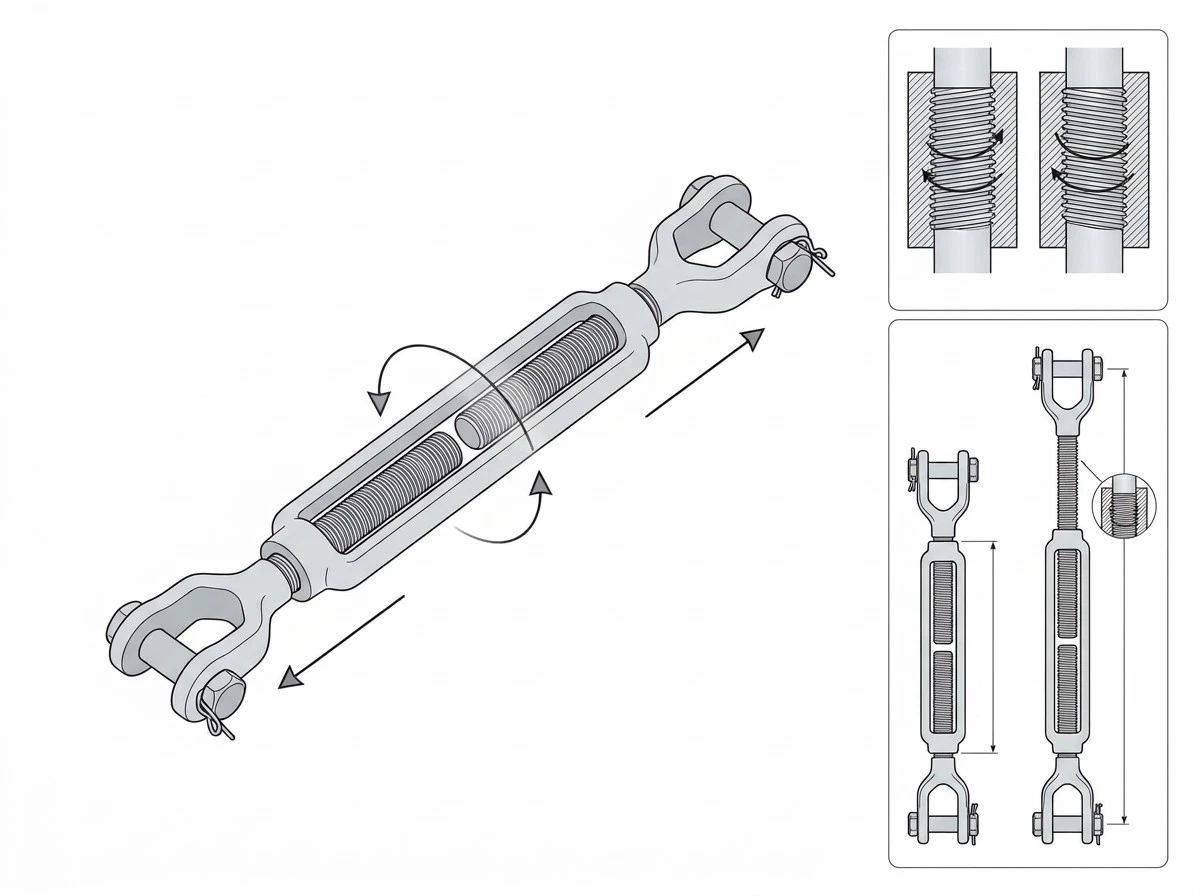

A conventional turnbuckle consists of a central body and two threaded end fittings. In a typical design, one end has a right-hand thread, and the other has a left-hand thread. When the body is rotated, both end fittings move inward or outward along their threads, changing the overall length of the assembly without disconnecting the attached components.

For jaw and jaw turnbuckles, this adjustment changes the distance between the two pin-mounted connection points. The amount of adjustment depends on the thread pitch, body design, and available thread engagement. When specifying a turnbuckle, check the minimum and maximum installed lengths to ensure the required adjustment range can be achieved while maintaining adequate thread engagement at both ends.

Where Jaw and Jaw Turnbuckles Fit

Jaw and jaw turnbuckles are used in assemblies that require length adjustment and pin-mounted connections at both ends. The suitable configuration depends on the connected hardware, available space, and operating conditions.

Application	Key Considerations
Cable tensioning	Match the jaw ends to the cable terminals and confirm the required adjustment range.
Industrial equipment	Check pin-hole diameter, jaw width, and clearance around adjacent components.
Adjustable bracing	Confirm the installed length, thread engagement, and material suitability for the environment.
Maintenance assemblies	Consider pin access and retention if the connection needs to be removed for servicing.

The required load rating and material specifications should be determined by the intended application. For lifting or other safety-critical uses, verify that the complete assembly meets the relevant design standards and load requirements before use.
