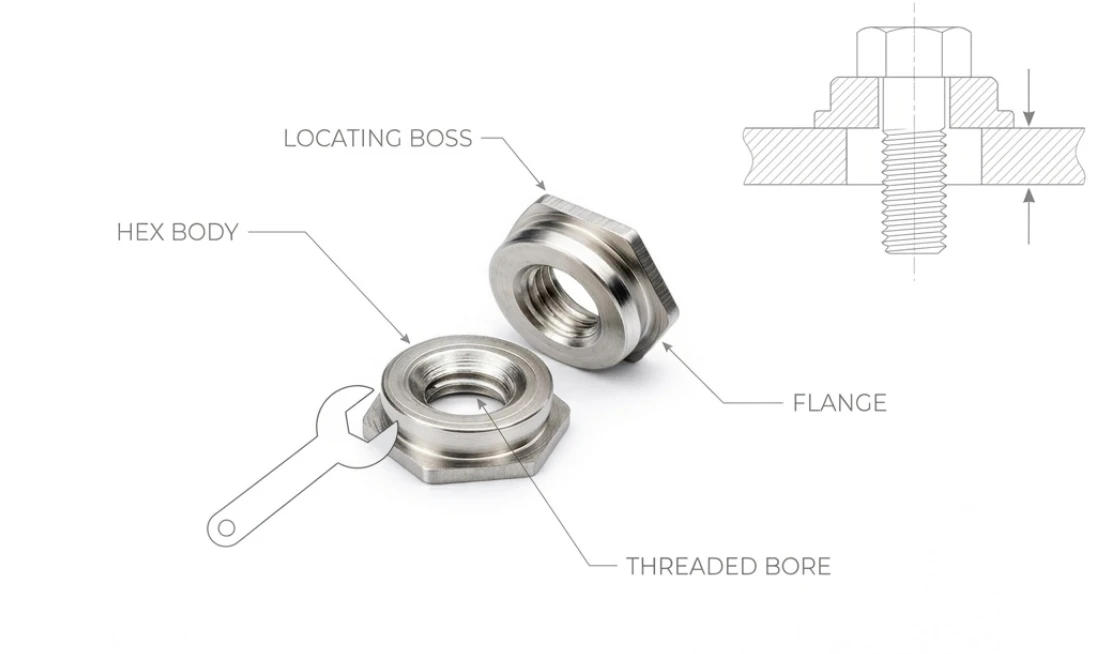

A flush nut combines three functional features, each serving a different purpose. The hex body provides a gripping surface for a wrench or socket during tightening. The locating boss fits into a matching counterbore in the panel, helping keep the nut aligned with the bolt hole and reducing unwanted movement during assembly. The threaded bore engages the mating bolt to secure the connection, while the flange provides a bearing surface to distribute clamping force against the assembled components.
These features work together to support stable positioning, secure fastening, and a low-profile finish. The locating boss height and overall nut dimensions must match the panel's counterbore geometry to achieve the intended fit.
Materials and Finishes for Different Applications
Material selection depends on the operating environment, corrosion exposure, and assembly requirements. Stainless steel suits many instrument panels and industrial enclosures, with 304 offering general corrosion resistance and 316 providing greater resistance in chloride-rich environments. Brass is an option for applications requiring electrical conductivity, while carbon steel offers a cost-effective solution for many indoor assemblies. Consider aluminum when the nut needs to match an aluminum assembly.
Finishes can further improve corrosion resistance or change the surface appearance. Options include passivation for stainless steel, zinc plating for carbon steel, and nickel plating for brass. Black oxide is another option for steel parts where a dark finish is preferred. The appropriate material and finish should be selected according to the service environment and the requirements of the complete assembly. KEY-CNC also offers CNC machining for custom metal components.
Where Custom Flush Nuts Are Used
Flush nuts are suitable for assemblies where a low-profile finish, secure fastening, and accurate positioning are important.
| Application | Why Flush Nuts Are Used |
|---|---|
| Instrument and control panels | Help keep fasteners level with the panel surface for a neat, unobtrusive finish. |
| Vehicle and aircraft interiors | Reduce protruding hardware around interior panels and trim, where space and surface clearance matter. |
| Robotics and automation equipment | Help avoid interference with moving parts, fixtures, and nearby components when correctly recessed. |
| Medical equipment enclosures | Provide a low-profile fastening option for surfaces that require regular cleaning. |
| Audio racks and electronic equipment | Support compact assemblies with a clean appearance and fewer protruding fasteners. |
As a custom component, a flush nut should be specified according to the actual assembly. For quotation, provide the thread size, panel thickness, counterbore diameter and depth, material, and required finish. These details help determine the locating boss dimensions and achieve the intended flush fit.
