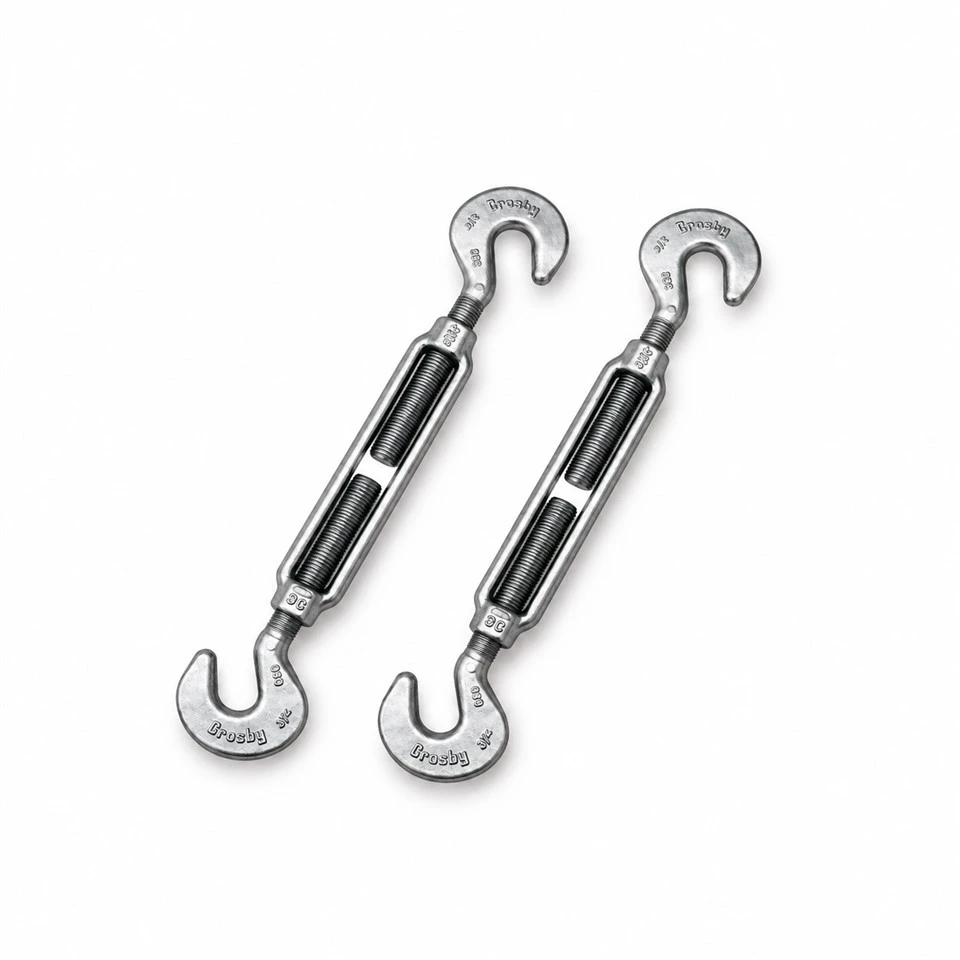

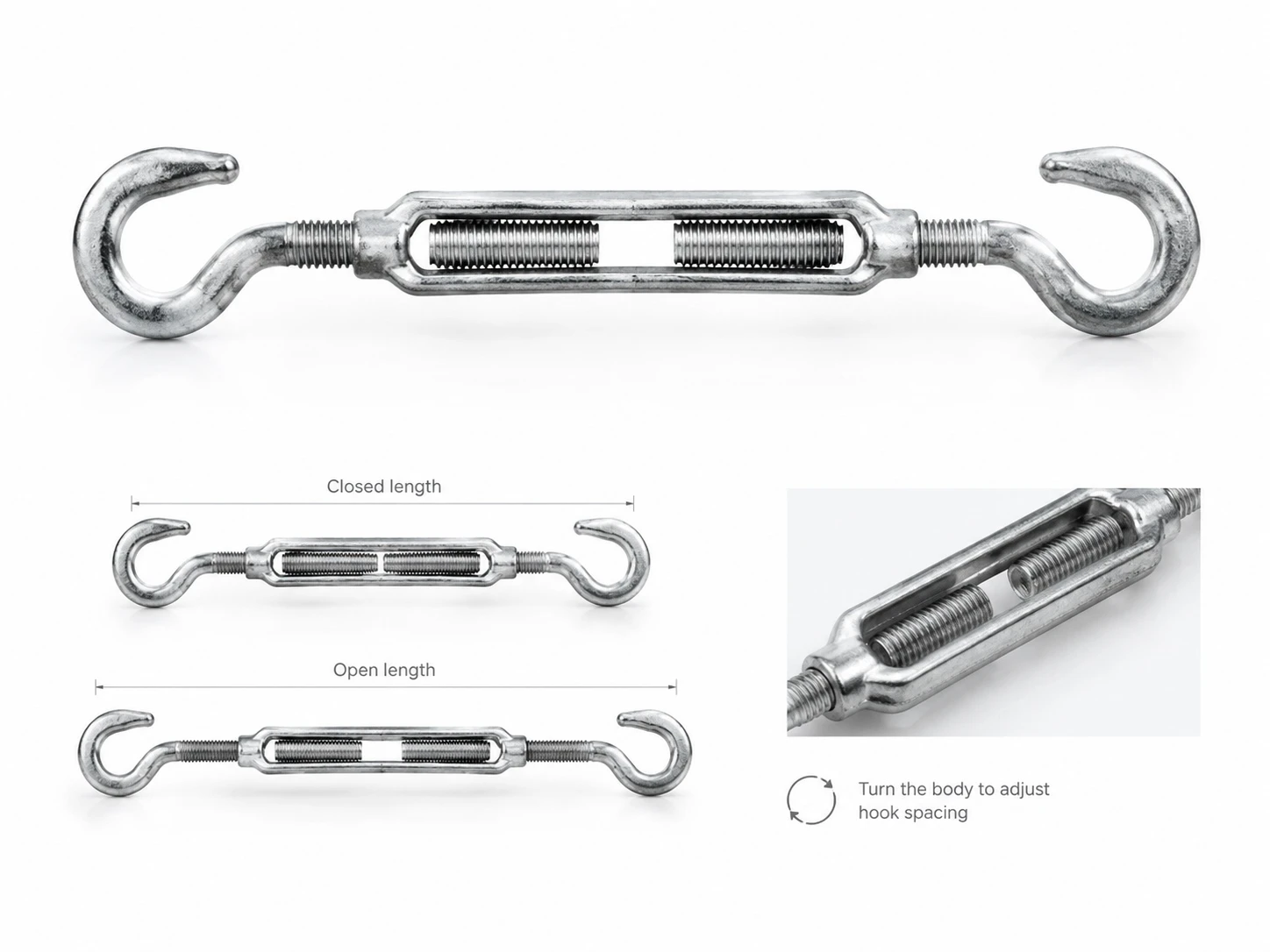

A hook and hook turnbuckle has two hooked ends connected by a threaded central body. Turning the body adjusts the distance between the hooks, allowing for adjustment within its adjustment range.
This makes it useful for setting the length and tension of compatible connections without repositioning the attached components.
When specifying Custom Hook and Hook Turnbuckles, check the closed length, open length, and usable adjustment travel to ensure the selected design meets your installation requirements.
What Makes the Hook-and-Hook Configuration Useful?
The two-hook arrangement is particularly relevant when both connection points are accessible and compatible with open hooks. Compared with a configuration that uses closed eyes or other end fittings, hooks can make attachment and removal more convenient in suitable applications.
However, an open hook is not a fully enclosed connection. Its suitability depends on the direction of force, the possibility of disengagement, the shape of the mating hardware, and the consequences of accidental release.
For this reason, hook and hook turnbuckles should be selected according to the actual connection conditions rather than convenience alone. Applications involving lifting, overhead suspension, fall protection, or other safety-critical loads require appropriately rated equipment and application-specific engineering review. A general-purpose adjustable connector should not be assumed suitable for these uses.
The hook profile also deserves attention. The opening width, throat depth, curvature, and overall hook dimensions determine whether the fitting can engage with the intended attachment point. Even when the thread size is correct, a mismatch in hook geometry can prevent proper installation.

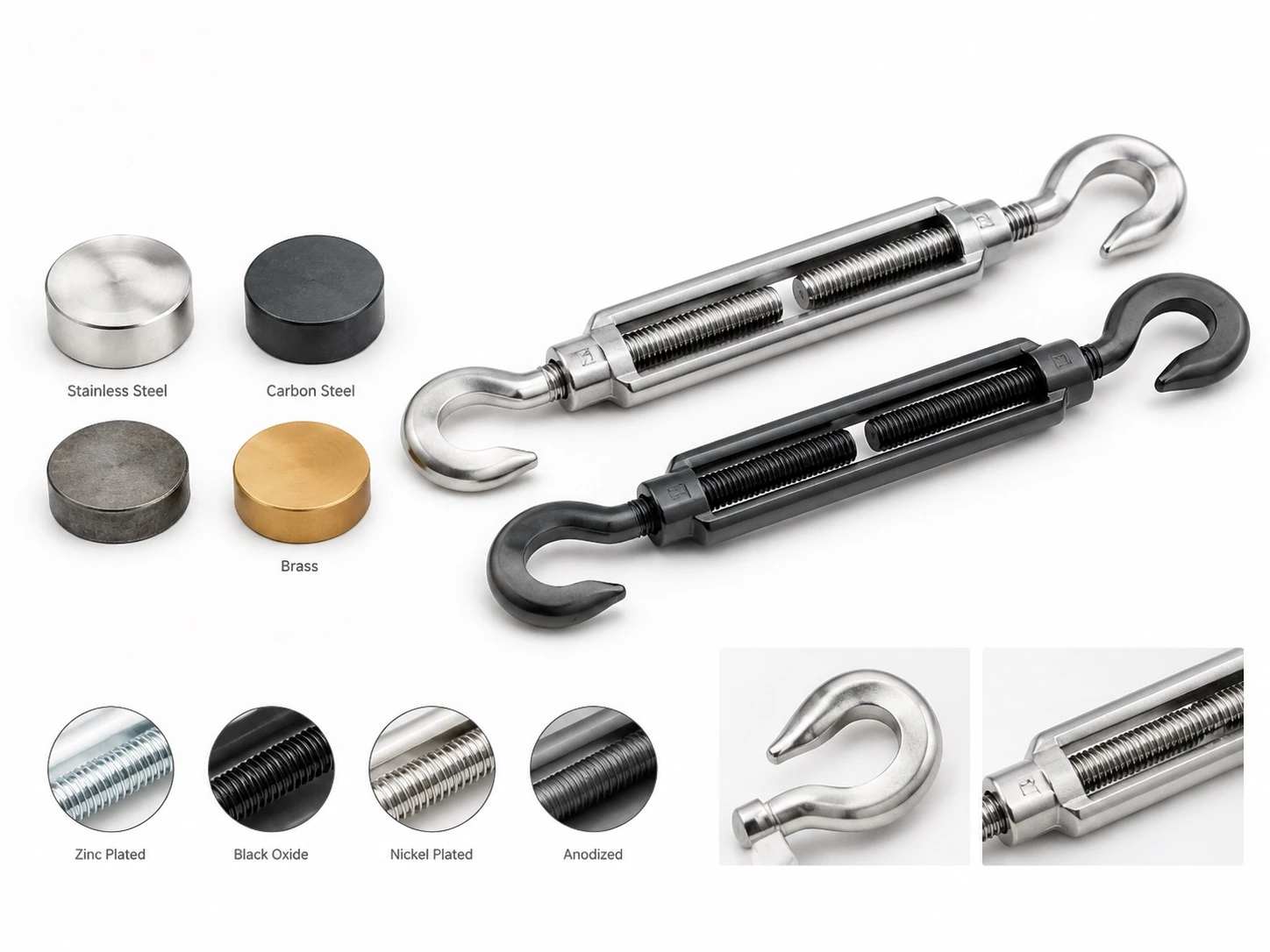

Material and Surface Finish
Material and finish should be selected based on the working environment, corrosion exposure, and performance requirements.
Carbon steel is a common choice for industrial hardware, with the grade and surface treatment specified according to the application. Stainless steel may be preferred where moisture and corrosion resistance are important, though the right grade depends on the actual exposure conditions.
Surface finish also affects appearance, corrosion protection, and dimensional fit. For threaded parts, buyers should consider whether the coating could affect thread engagement or the fit of mating components.
For Custom Hook and Hook Turnbuckles, material and finish requirements should be confirmed together during drawing review and quotation to ensure they suit the intended application.
Our factory
Frequently Asked Questions
What information is needed to request a quote for custom hook and hook turnbuckles?
+
-
Provide a drawing or sample where possible, together with the thread specification, overall length, adjustment range, hook dimensions, material, finish, order quantity, and intended application. If a load rating or industry standard is required, identify it at the beginning of the inquiry.
Can hook and hook turnbuckles be made to a non-standard length?
+
-
A non-standard length may be considered if the design and manufacturing process support it. The required closed length, open length, usable adjustment travel, thread engagement, and hook geometry should be reviewed together before the design is finalized.
How do I choose between carbon steel and stainless steel?
+
-
Consider the mechanical requirements, environmental exposure, corrosion risk, maintenance conditions, and required finish. The exact grade should be selected according to the application rather than material name alone. For load-bearing products, the complete assembly must meet the required performance specifications.
Are hook and hook turnbuckles suitable for lifting applications?
-
Not automatically. Use only products specifically designed and rated for the intended lifting or rigging application. Verify the manufacturer's working load limit, applicable standards, loading direction, and required documentation. Do not use an unrated custom component for safety-critical lifting.
Can KEY-CNC manufacture a complete custom turnbuckle assembly?
+
-
This depends on the proposed design and the processes required for the body, hooks, threads, and final assembly. KEY-CNC offers custom manufacturing services for suitable components, but the availability of a complete hook and hook turnbuckle assembly must be confirmed through technical review.
