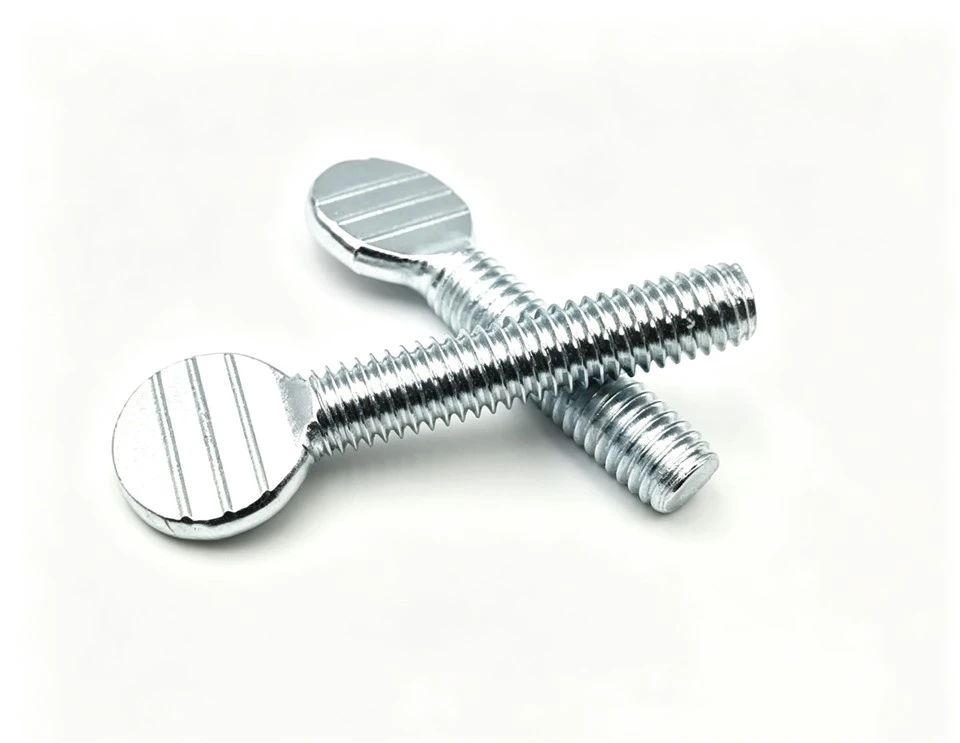

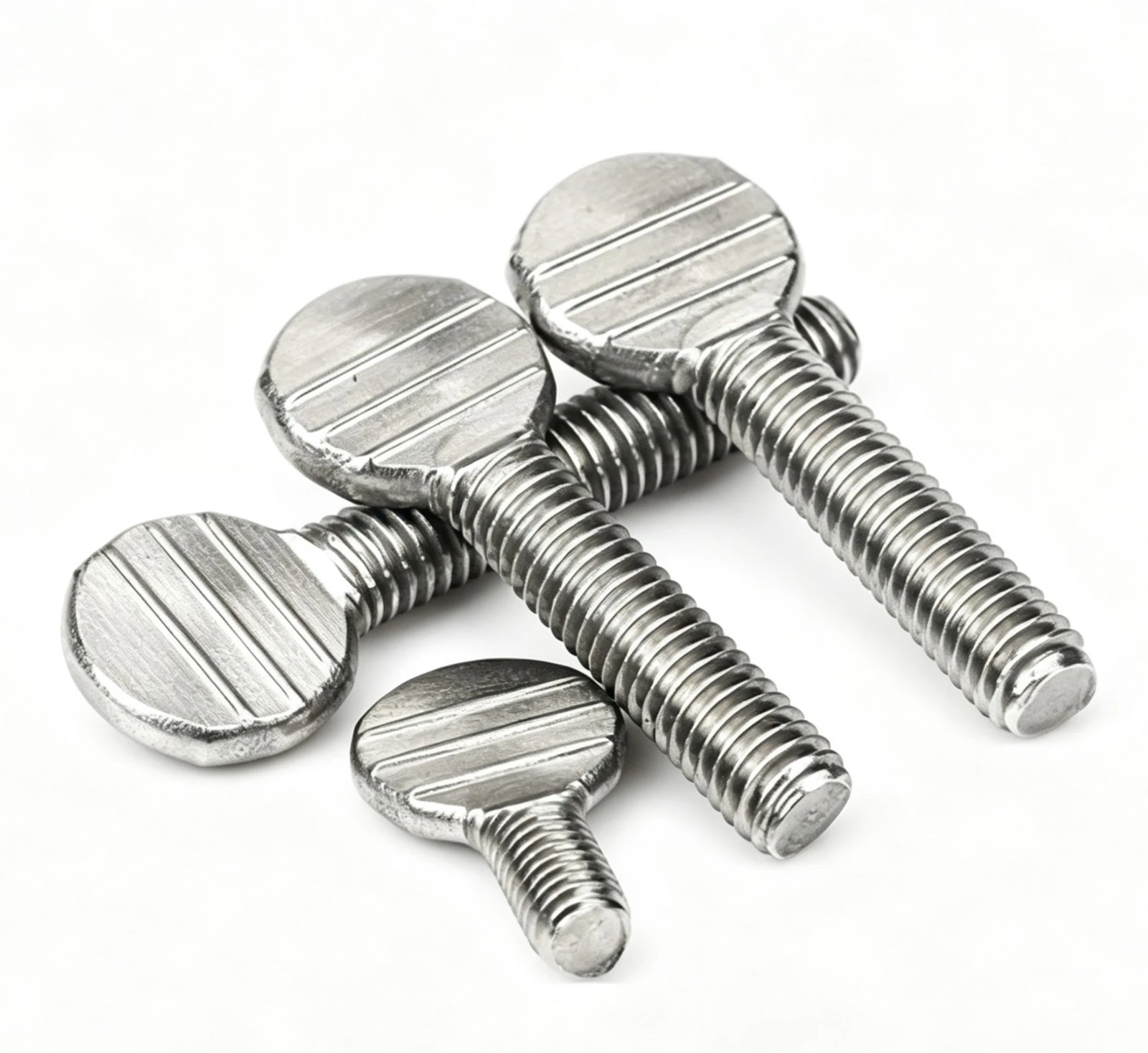

A Spade Head Thumb Screw is a manually operated fastening component designed for applications where frequent assembly and disassembly are required without the use of tools. The spade-shaped head provides a broader contact surface compared to standard knurled or round thumb screws, improving grip and torque control during manual tightening.
In CNC machined assemblies, electronics housings, fixtures, and mechanical panels, the Spade Head Thumb Screw is often selected for its balance between accessibility and controlled clamping force. It is commonly used where tool-less adjustment improves efficiency in maintenance or positioning tasks.
The geometry of the Spade Head Thumb Screw typically includes a flat, elongated head profile resembling a small paddle or spade. This structure improves finger contact and reduces slippage during tightening or loosening.
Key structural considerations include:
- Head profile designed for direct finger torque application
- Threaded shaft compatible with standard metric and imperial systems
- Optional knurled or smooth edge finishing depending on grip requirement
- Material options including stainless steel, aluminum, and alloy steel for different load conditions
The design is optimized for repetitive manual operation in environments where tool usage is impractical or time-consuming.
Material Selection and Surface Treatment Options
Material selection directly affects the mechanical performance and corrosion resistance of the Spade Head Thumb Screw.
Common material choices include:
- Stainless steel (304 / 316) for corrosion-resistant environments
- Carbon steel for general industrial applications
- Aluminum alloys for lightweight assemblies
- Brass for electrical conductivity requirements
Surface finishing options may include:
- Zinc plating for basic corrosion protection
- Black oxide for reduced glare and moderate wear resistance
- Anodizing for aluminum variants used in CNC assemblies
Manufacturing and Quality Control Considerations
In CNC manufacturing environments such as Key-CNC, production of Spade Head Thumb Screw components requires attention to dimensional accuracy and thread consistency.
Key manufacturing steps typically include:
- CNC turning for shaft and thread formation
- Precision milling for spade head geometry
- Deburring to ensure smooth manual handling
- Thread inspection using gauges for tolerance verification
Quality control may involve:
- Dimensional inspection with calipers and CMM systems
- Torque resistance testing for head grip performance
- Surface roughness evaluation for ergonomic usability
Spade Head Thumb Screw Applications
The Spade Head Thumb Screw is used in assemblies where manual accessibility and repeatable adjustment are required rather than permanent locking.
Common application areas include:
- CNC machining fixtures and positioning jigs
- Electronic enclosures and access panels
- Robotics maintenance modules and adjustable joints
- Laboratory and testing equipment setups
- Lightweight mechanical assemblies in prototyping environments
Its tool-less design reduces downtime during maintenance and improves workflow efficiency in production environments.
Selection Guidelines
When selecting a Spade Head Thumb Screw, several factors should be evaluated based on application requirements:
- Required tightening frequency and manual accessibility
- Load conditions and vibration exposure
- Material compatibility with mating components
- Environmental conditions such as humidity or corrosion risk
- Thread size standardization across assemblies
Proper selection ensures stable performance without over-tightening or thread wear over repeated cycles.
Frequently Asked Questions
What is a Spade Head Thumb Screw used for?
+
-
It is used for manual fastening applications where frequent adjustment or tool-less operation is required.
Can Spade Head Thumb Screws be customized?
+
-
Yes. Key-CNC supports customization of thread size, head geometry, material selection, and surface finish based on specific CNC machining and assembly requirements.
What is the typical lead time for production?
+
-
Standard production lead time is around 10–15 days, depending on order quantity, material selection, and customization requirements.
Is it suitable for high-load applications?
+
-
It is generally used in light to medium load conditions where quick access and repeatable manual adjustment are more important than maximum torque capacity.
What materials are commonly used?
+
-
Common options include stainless steel (304/316), carbon steel, aluminum, and brass, selected based on strength requirements, corrosion resistance, and application environment.
